How do I manage Documents in Airworthiness Review Centre?

Table of Contents :

How do I view the document in another display format?

1. Login to your account using the username and password provided.
2. Hover over the Technical Management tab and Click on Airworthiness Review Centre tab.
3. Select record from grid for which you want to Compile Files and Click on view icon. It will open new window.
4. Select row from grid where value of Check List column is No.
5. Go to end of that row and Click on view icon. It will open new window.
6. At the top left hand corner of the page you will see a header labelled View with a drop down box to the right.
7. The drop down box will contain a series of formats to display, left click the option of preference.

How do I reorder documents?

1. Login to your account using the username and password provided.
2. Hover over the Technical Management tab and Click on Airworthiness Review Centre tab.
3. Select record from grid for which you want to Compile Files and Click on view icon. It will open new window.
4. Select row from grid where value of Check List column is No.
5. Go to end of that row and Click on view icon. It will open new window.
6. Hover over the Manage Documents drop down and Click on Reorder Documents option. It will open new Window.
7. Reorder Document using Move Icon.
8. Click on Save Button.

How do I copy a document?

1. Login to your account using the username and password provided.
2. Hover over the Technical Management tab and Click on Airworthiness Review Centre tab.
3. Select record from grid for which you want to Compile Files and Click on view icon. It will open new window.
4. Select row from grid where value of Check List column is No.
5. Go to end of that row and Click on view icon. It will open new window.
6. In the new window, select documents that you want to copy.
7. Go to top right corner and Select the Path where you want to Copy document by Selecting the appropriate filters.
8. Hover over the Manage Documents button and Select the Copy option in dropdown. It will open new Window.
9. At the new window you have a list of row at selected group you have to select one or multiple rows in which you want to copy document.
10. Click on Copy button for copy document in selected rows.

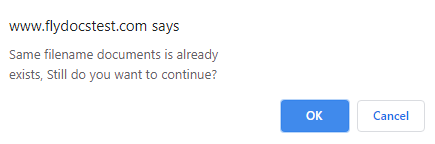

11. After clicking on Copy button, If same filename document is already present then it will show a pop-up message. If you still want to continue the copy process then click on OK button, then the copy process will be done.

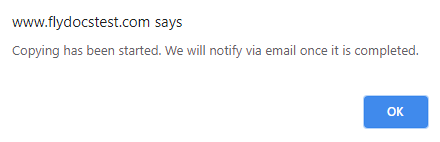

12.  It will show you Popup window. Click on the OK button.

How do I move documents?

1. Login to your account using the username and password provided.
2. Hover over the Technical Management tab and Click on Airworthiness Review Centre tab.
3. Select record from grid for which you want to Compile Files and Click on view icon. It will open new window.
4. Select row from grid where value of Check List column is No.
5. Go to end of that row and Click on view icon. It will open new window.
6. In the new window, select documents that you want to move.
7. Go to top right corner and Select the Path where you want to Move document by Selecting the appropriate filters.
8. Hover over the Manage Documents drop down and Click on Move option. It will open new window.
9. At the new window you have a list of row at selected group you have to select one or multiple rows in which you want to move document.
10. Click on MOVE button.
11. After clicking on Move button, If same filename document is already present then it will show a pop-up message. If you still want to continue the copy process then click on OK button, then the move process will be done.

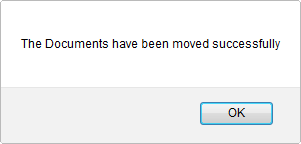

12. It will open document moved successfully popup. Click on O.K button.

How do I save Merged documents directly to the respective row?

1. Login to your account using the username and password provided.
2. Hover over the Technical Management tab and Click on Airworthiness Review Centre tab.
3. Select record from grid for which you want to Compile Files and Click on view icon. It will open new window.
4. Select row from grid where value of Check List column is No.
5. Go to end of that row and Click on view icon. It will open new window.
6. To Merge two or more Documents scroll down to the Document to be selected and tick the box below the thumbnail.
7. Hover over the Manage Documents and Click on Download to PC option.

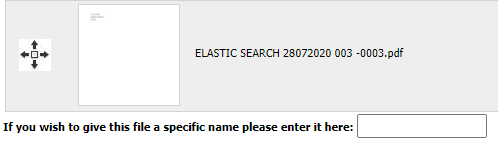

8. Enter file Name that you want to give to document, Click on MERGE FILES button.
9. Select the Save to Row radio button from action option
10. It will show you pop up message. Click on OK button. Merged documents will save in selected document list page.

How do I download Merged documents to PC?

1. Login to your account using the username and password provided.
2. Hover over the Technical Management tab and Click on Airworthiness Review Centre tab.
3. Select record from grid for which you want to Compile Files and Click on view icon. It will open new window.
4. Select row from grid where value of Check List column is No.
5. Go to end of that row and Click on view icon. It will open new window.
6. To Merge two or more Documents scroll down to the Document to be selected and tick the box below the thumbnail.
7. Hover to Manage Documents drop down and Click on Merge option. It will open new window.
8. Enter file Name that you want to give to document.
9. Click on SAVE button. It will ask you to download .zip file.

How do I download split documents to PC?

1. Login to your account using the username and password provided.
2. Hover over the Technical Management tab and Click on Airworthiness Review Centre tab.
3. Select record from grid for which you want to Compile Files and Click on view icon. It will open new window.
4. Select row from grid where value of Check List column is No.
5. Go to end of that row and Click on view icon. It will open new window.
6. Select document that you want to Split.
7. Hover to Manage Documents dropdown and Click on the Split/Extract option. It will open new window.
8. Hover over the SPLIT ALL PAGES button and Click on "Download to PC" option. It will allow you to download zip file.

How do I save split documents directly to the respective row?

1. Login to your account using the username and password provided.
2. Hover over the Technical Management tab and Click on Airworthiness Review Centre tab.
3. Select record from grid for which you want to Compile Files and Click on view icon. It will open new window.
4. Select row from grid where value of Check List column is No.
5. Go to end of that row and Click on view icon. It will open new window.
6. Select document that you want to Split.
7. Hover to Manage Documents dropdown and Click on the Split/Extract option. It will open new window.
8. Hover over the SPLIT ALL PAGES button and Click on "Save to Row" option.

Note: Attached files from another location is not allowed to split in destination. Please split the file available in original source location.

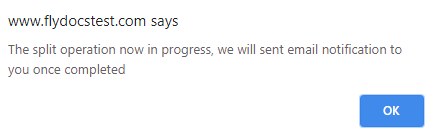

9. It will show you pop up message. Click on OK / Cancel button.
10. It will show you pop up message. Click on OK button. Split documents will save in same document list page.

How do I Extract Document?

1. Login to your account using the username and password provided.
2. Hover over the Technical Management tab and Click on Airworthiness Review Centre tab.
3. Select record from grid for which you want to Compile Files and Click on view icon. It will open new window.
4. Select row from grid where value of Check List column is No.
5. Go to end of that row and Click on view icon. It will open new window.
6. Select document that you want to extract.
7. Hover to Manage Documents dropdown and Click on the Split/Extract option. It will open new window.
8. Enter page number that you want to Extract.
9. Click on EXTRACT PAGES button. It will ask you to download Extracted pages zip file.
10. It will show you Popup asking whether you want to open or save file.

How do I download document to PC?

1. Login to your account using the username and password provided.
2. Hover over the Technical Management tab and Click on Airworthiness Review Centre tab.
3. Select record from grid for which you want to Compile Files and Click on view icon. It will open new window.
4. Select row from grid where value of Check List column is No.
5. Go to end of that row and Click on view icon. It will open new window.
6. Select document that you want to extract.
7. To download documents scroll down to the Documents to be selected and tick the box below the thumbnail.
8. Hover over the Manage Documents and Click on Download to PC option.
9. The option will be given to where the Documents are to be saved to.
